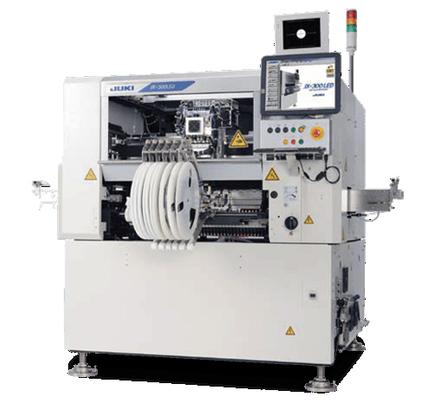

JX-300 LED Flexible LED Mounter

JX-300 LED Flexible LED Mounter Description:

The new JX-300 LED Mounter offers a flexible placement system specially designed for LED lighting products and mid- to large LCD display backlights.

The machine combines high production capacity and versatility at a reasonable cost. It is perfectly suited for low cost LED placement and therefore ideal for a company starting up automated surface mount production.

It can support ultra-long boards up to 1,500mm and JUKI laser centering for high speed, high accuracy placement offers the best in the industry.

• Ultra-Long Board Support
• High Speed
• High Accuracy

Placement head
multi-nozzle laser head (6 nozzles)

Placement rate (max.)
27,100 cph laser centering (optimum)
19,300 cph laser centering (IPC 9850)

Component range
0201 to 33.5 x 33.5 mm

Component height (max.)
12 mm

Placement accuracy
±50 μm (Cpk ≥ 1) laser centering

Board dimension (max.)
1,200 x 360 mm
1,500 x 360 mm (with long board option)

Long Board Option
By applying the board three times, the mounter is applicable to long boards of up to a maximum of
1,500 mm x 360 mm.

Nozzles for LED components
JUKI offers a variety of nozzles for the assembly of LED components.
